Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression

Hubei Huate Special Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression

Place of Origin : Hubei, China

Price : $24,000/units 1-9 units

Product name : Dust suppression vehicle

Energy type : Pure Electric

Color : Custom's Requirement

MOQ : 1

Packaging Details : Wooden box

Delivery Time : 30

Payment Terms : T/T

Supply Ability : Meet large-scale orders

Brand Name : HUATE

Certification : CCC

Contact Now

Pure Electric Waste Compressor 5101ZYSBEV - The Ideal Solution for Streamlined Waste Compression
Product Overview

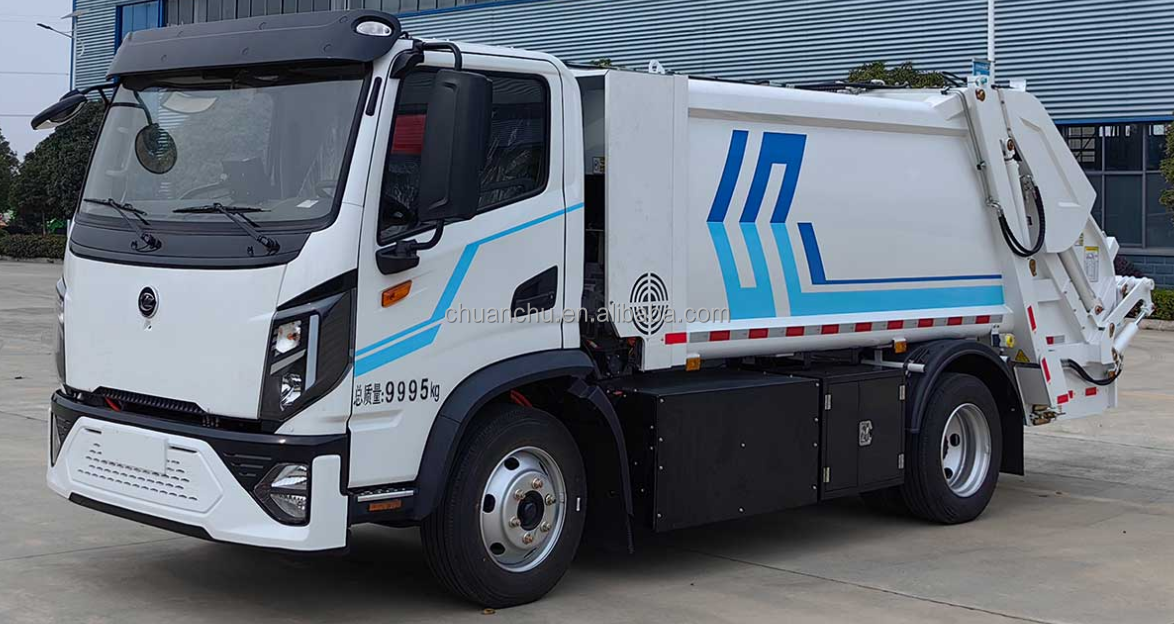

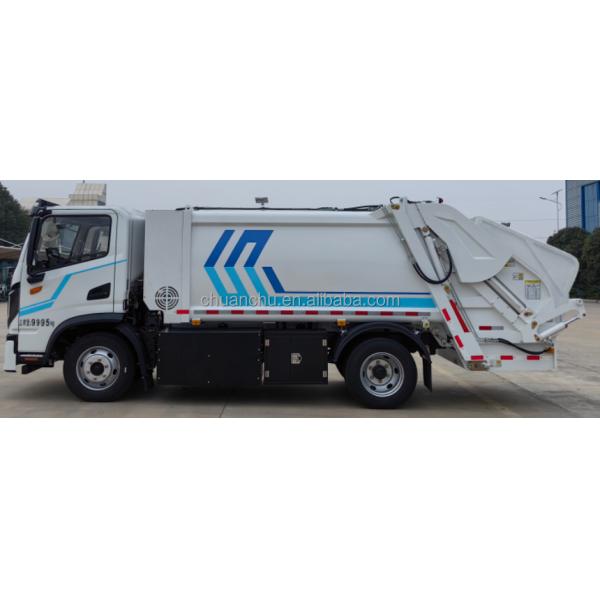

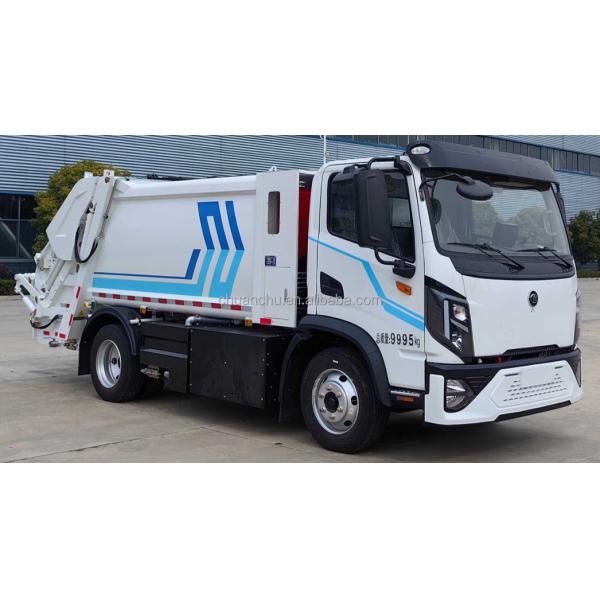

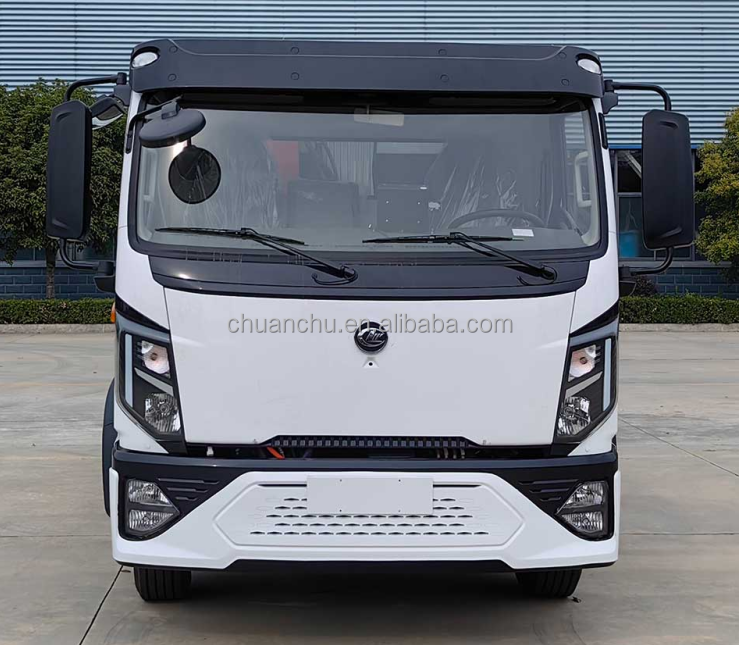

The HTT 5101ZYSBEV is a pure electric compressed type garbage truck designed for efficient waste management operations with zero emissions.
Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression
Technical Specifications
Vehicle Technical Parameters
Product Name Pure electric compressed type garbage truck Product Model HTT 5101ZYSBEV
Gross Mass (Kg) 9995 Production Address Suizhou City, Hubei Province
Rated Load Mass (Kg) 3010,2660,2750,2560,2410 Outline Dimension (mm) 7210,7100,6950×2260 ×2600
Curb Weight (Kg) 6790,7140,7050,7240,7390 Axle Weight 2995/7000
Number of Cab Members (person) 2,3 Number of Axles 2
Approach Angle / Departure Angle (°) 16/35 Front Suspension / Rear Suspension (mm) 1275/2195,1275/2085
Wheel Base 3360 Top Vehicle Speed (Km/h) 90
Chassis Technical Parameters
Chassis Model CL1100JBEV Chassis Brand Pure electric truck chassis
Number of Axles 2 Number of Tires 6
Tyre Size 245/70R19.5 16PR Number of Steel Plate Spring Sheets 8/9+7
Front Gauge (mm) 1780 Rear Track (mm) 1642
Fuel Types Pure electric ABS Have
Chassis Wheelbase 3300,3850 Battery Brand Ningde era
Rated / Peak Power (kW) 120/200 Battery Level (kWh) 128.86
Rated / Peak Torque (Nm) 200/500 Box Volume 7 m3
Rated / Peak Rotation Speed (rpm) 5730/12000 Reduction Ratio ≥2.5
Driving Range (km) 220 Charging Time (min) 35
Engine Type Displacement (ml) Power (Kw) Horsepower
TZ230XSZ50 - 200 272
After-Sales Service
If after-sales problems occur, please contact our customer service personnel immediately. We will promptly address and resolve any issues for you.
Manufacturer Information
Hubei Huate Special Equipment Co., Ltd. is a national high-tech enterprise specializing in the R&D, manufacturing, and sales of special trucks and truck accessories. Founded in 2009 and located in Suizhou, Hubei Province (China's special truck capital), we offer a comprehensive range of vehicles including dangerous goods tank trucks, chemical storage tanks, refrigerated trucks, emergency rescue vehicles, and sanitation vehicles.
Our company maintains ISO 9001, ISO 14001, and ISO 45001 certifications, with products meeting international 3C standards and CCS certification. We participate in national and industry standard development and hold multiple invention patents.
With over 15 years of experience, our products are exported to more than 30 countries across Africa, Middle East, Southeast Asia, America, and Europe.
Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression
Manufacturing Process
Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression
Certifications
Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression
Customer References
Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression
Project Showcase
Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression
Packaging
Pure Electric Waste Compressor 5101ZYSBEV The Ideal Solution for Streamlined Waste Compression
Frequently Asked Questions
Q1. Payment Terms
  • T/T: 30% deposit, 70% before delivery from factory
  • L/C: L/C price is higher than T/T price
  • We provide photos and video of finished truck before balance payment
Q2. Delivery Terms
EXW, FOB, CFR, CIF, DAF, FCA, DDU, DAP etc. We mainly handle FOB, CIF, DAF.
Q3. Delivery Time
Typically 10-20 days after receiving advance payment. Right-hand drive vehicles require longer lead time than left-hand drive. Exact timing depends on order specifics.
Q4. Quality and Warranty
  • Experienced workers and engineers ensure strict quality control
  • 100% testing before delivery
  • 12-month warranty with free spare parts
  • Compliance with state special trucks technical specifications
Q5. How to Trust Us?
  • BV factory audit certification
  • Option for third-party factory inspection
  • 15+ years industry experience
Q6. Visiting Our Factory
Our factory is located in Suizhou City, Hubei Province. Visitors can travel to Wuhan (provincial capital) by train or plane, and we provide pickup service from Wuhan railway station or Tianhe airport. Invitation letters available upon request with your personal and company information.
