Product Description

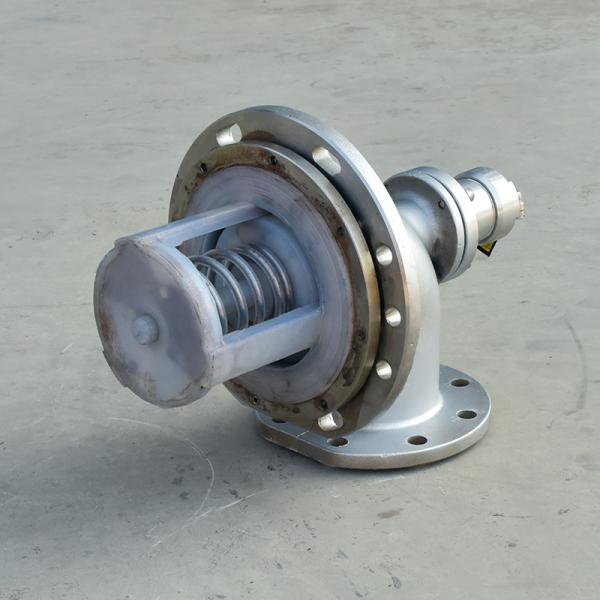

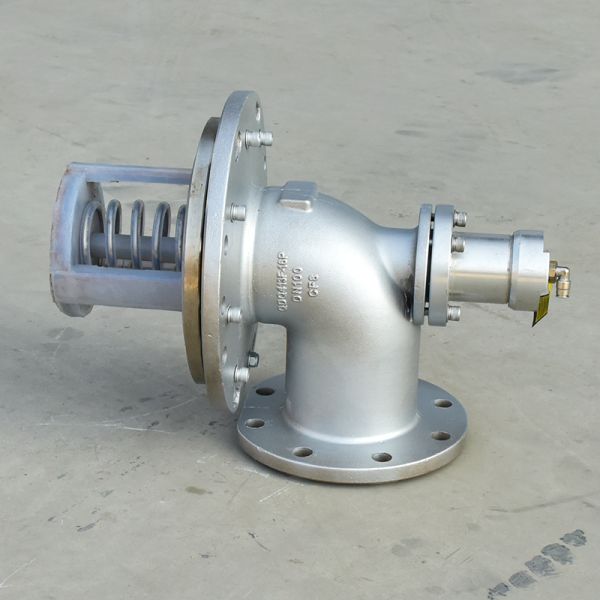

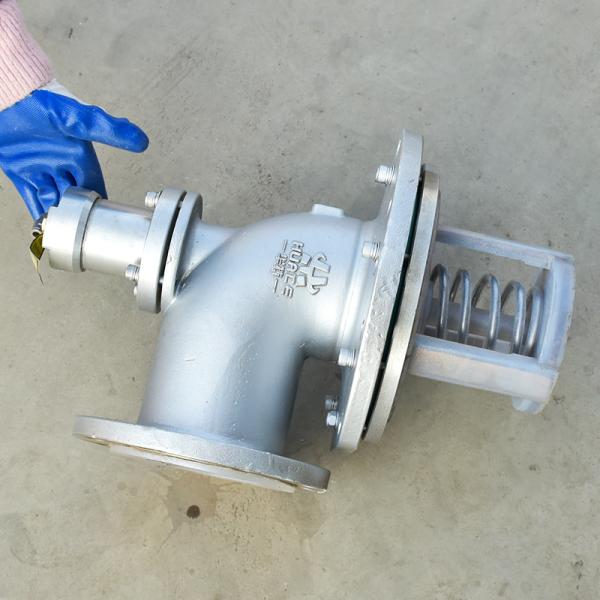

Stainless Steel Lined Plastic Pneumatic Emergency Bottom Valve
The main of the valve was installed inside of the tank.When the pipeline or valve is accidentally broken or damaged,the tank can still be sealed.So this valve can improve the safety and reliability of transportation.The main body id made of carbon steel.This product id formed by precision casting as a whole,with simple structure,durability and convenient maintenance.
Feature:
1.Reasonable structure design to ensure large flow through,integrally formed by precision casting.
2.The surface is acid-washed and has good corrosion resistance and wear resistance.
3.Full lining type method,durable.
4.When impacted by an external force greater than 1000J,the valve body is broken at the cut-off groove and the tank body is kept sealed,effectively preventing oil leakage.
| Product name | Pneumatic Emergency Bottom Valve |
| Main Meterial | Stainless steel/F46 |
| Nominal diameter | DN100 |
| Nominal pressure | 0.6MPa |
| Design temperature | -20ºC~+120ºC |
| Weight | 21kg |
| Medium | Chemical material |
| Flange Size | 6" |
| Seal material | Viton,PTFE |
FAQ
Q: Are you trading company or manufacturer? A: We are factory.
Q:Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost
Q: :How long have you worked in this field?
A: Over 15 years. Q:What's the delivery time? A: Standard products will be arranged to ship in 7-10 days after full payment received. Q: Can your factory produce products according to our drawings or samples? A: Yes, of course we can.
