Place of Origin : Hubei, China
Product name : electric garbage truck
Energy type : Pure Electric
Color : Custom's Requirement
Price : $24,000/units 1-9 units
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders






Vehicle technical parameters | ||||||||
product name | Pure electric Sprinkler truck | product model | HTT5186GPSBEV | |||||
Total mass(Kg) | 18000 | Production address | Suizhou City, Hubei Province | |||||
Rated load mass (Kg) | 10620,10555 | outline dimension (mm) | 8260,7810,7310,7760×2550,2550×3410,3360,3210,3160 | |||||
curb weight (Kg) | 7250 | axle weight | 6500/11500 | |||||
Number of people in the cab (people) | 2,3 | number of axles | 2 | |||||
Approach angle / departure angle of (°) | 25/21 | Front suspension / rear suspension (mm) | 1250/2560,1250/2110 | |||||
wheel base | 3950 | Top vehicle speed (Km/h) | 90,89 | |||||
Upper volume | 8 water / 7 dust | |||||||
Chassis technical parameters | ||||||||
Chassis model | CA1180P62L3BEV | Chassis brand | Liberation card | |||||
number of axles | 2 | Number of tires | 6 | |||||
tyre size | 10.00R20 18PR | |||||||
Number of steel plate spring sheets | 9/11+8,3/4+3,9/10+8,8/10+8 | |||||||
front gauge (mm) | 1875,1900 | rear track (mm) | 1820,1860 | |||||
Fuel types | Pure electric | ABS | have | |||||
Chassis wheelbase | 3950mm | Drive the motor | Faster motor | |||||
battery capacity | 109.04KWH | Charging time | About 2.5 hours | |||||
Battery category | Byd has lithium iron phosphate | Full range | 190 KM | |||||
Battery pack rated voltage | 618.24V | Charging pile power is recommended | 120KW | |||||
Maximum power of the chassis motor | 160KW | Rated power of the mounted motor | 80 KW | |||||
Upload consumes power per hour | 40-50KWH | |||||||
engine type | displacement (ml) | power (Kw) | horsepower | |||||
TZ365XS-HSM1601 | 160 | 218 | ||||||
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | ||||||||







|
|

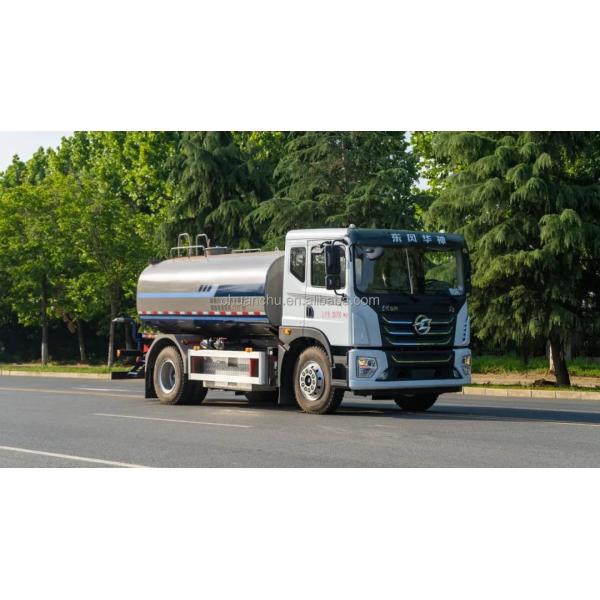

Pure Electric Dongfeng Manufactory Watering Cart Stainless Steel Water Tank Truck for Transporting and Sprinkling Images |
