Place of Origin : Hubei, China
Price : $19,000/units 1-9 units
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders






| Vehicle technical parameters | | | | | ||||
| product name | Pure electric road surface maintenance vehicle | product model | HTT 5041TYHBEV | | ||||
| gross mass (Kg) | 4495 | Production address | Suizhou City, Hubei Province | | ||||
| Rated load mass (Kg) | 1485 | outline dimension (mm) | 5235,5595X1820X2240,2275 | | ||||
| curb weight (Kg) | 2880 | axle weight | 1500/2995 | | ||||
| Number of cab members (person) | 2,3 | number of axles | 2 | | ||||
| Approach angle / departure angle of (°) | 17/15,23/15 | Front suspension / rear suspension (mm) | 1275/1785 | | ||||
| wheel base | 2800 | Top vehicle speed (Km/h) | 90 | | ||||
| Chassis technical parameters | | | | | ||||
| Chassis model | EQ1041TACEV3 | Chassis brand | Pure electric truck chassis | | ||||
| number of axles | 2 | Number of tires | 6 | | ||||
| tyre size | 185R15LT 8PR | | | | ||||
| Number of steel plate spring sheets | 3/5 | | | | ||||
| front gauge (mm) | 1395 | rear track (mm) | 1242 | | ||||
| Fuel types | Pure electric | ABS | have | | ||||
| Chassis wheelbase | 3300,3850 | Battery brand | Ningde era | | ||||
| Rated power / peak power (kw) | 55/110 | Driving range (km) | 265 | | ||||
| Rated torque / peak torque (N.m) | 150/318 | charging time (h) | 1.5 | | ||||
| Rated Speed / Peak Speed (r/min) | 3500/12000 | Driving range (km) | 220 | | ||||
| Rated / peak torque (Nm) | 200/500 | nominal voltage (V) | 386.4 | | ||||
| engine type | | displacement (ml) | power (Kw) | horsepower | ||||
| TZ210XSZ03 | | | 110 | 150 | ||||
| After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | | | | | ||||







|
|

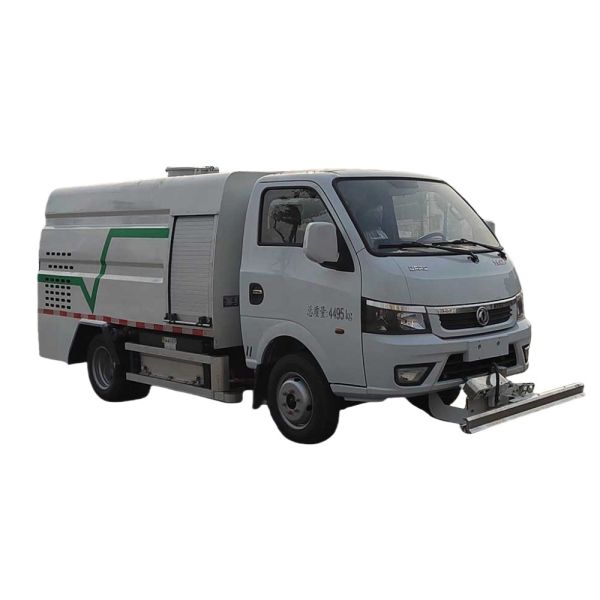

Eco Friendly Pure Electric Road Maintenance Vehicle Zero Emissions Images |
