Place of Origin : Hubei, China
Price : $25,500/units 1-9 units
Product name : electric garbage truck
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders





| Vehicle technical parameters | | | | | ||||
| product name | Pure electric sprinkler truck | product model | HTT5080ZYSBEV | | ||||
| gross mass (Kg) | 8995 | Production address | Suizhou City, Hubei Province | | ||||
| Rated load mass (Kg) | 3620 | outline dimension (mm) | 6410×217×2480 | | ||||
| curb weight (Kg) | 5180,4950 | axle weight | 4000/8495 | | ||||
| Number of cab members (person) | 2,3 | number of axles | 2 | | ||||
| Approach angle / departure angle of (°) | 21/14 | Front suspension / rear suspension (mm) | 1123/1487 | | ||||
| wheel base | 3800 | Top vehicle speed (Km/h) | 90 | | ||||
| Chassis technical parameters | | | | | ||||
| Chassis model | EQ1121KACEV1 | Chassis brand | Pure electric truck chassis | | ||||
| number of axles | 2 | Number of tires | 6 | | ||||
| tyre size | 255/70R22.5 16PR | | | | ||||
| Number of steel plate spring sheets | 8/10+7 | | | | ||||
| front gauge (mm) | 1400 | rear track (mm) | 1380 | | ||||
| Fuel types | Pure electric | ABS | have | | ||||
| Chassis wheelbase | 3800mm | Battery brand | Ningde era | | ||||
| Rated / peak power (kW) | 80/145 | Rated power of the mounted motor | 80 KW | | ||||
| Upload consumes power per hour | 40KWH | Rated / peak rotation speed (rpm) | 5730/12000 | | ||||
| Rated / peak torque (Nm) | 611/1800 | Battery level (kWh) | 144.86 | | ||||
| Driving range (km) | 320 | Charging time (min) | 50 | | ||||
| engine type | | displacement (ml) | power (Kw) | horsepower | ||||
| TZ400XSD16 | | | 220 | 300 | ||||
| After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | | | | | ||||







|
|

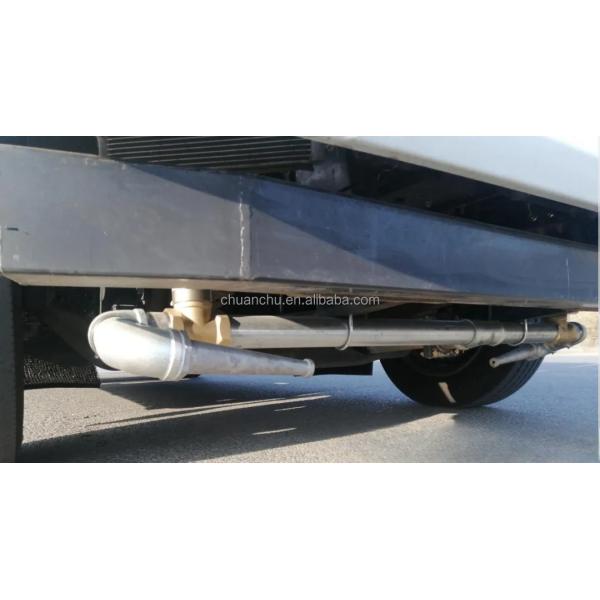

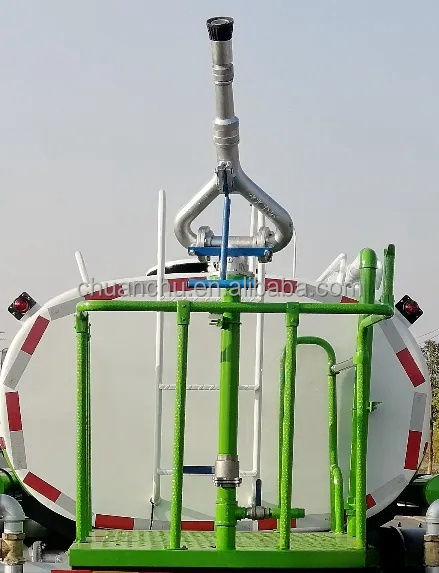

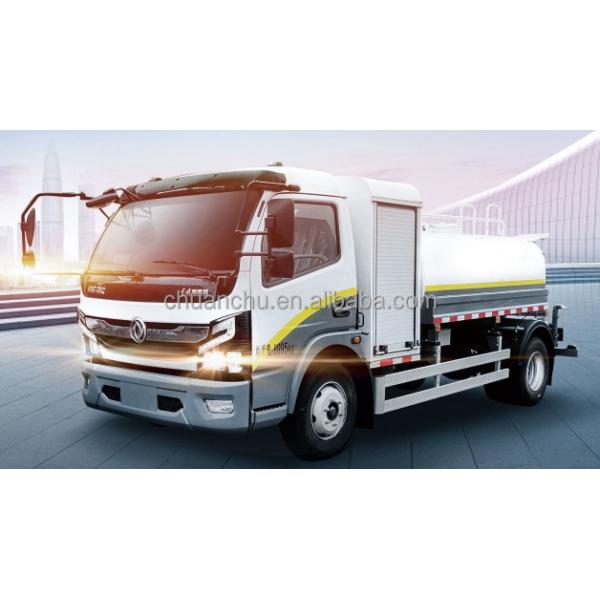

Eco Friendly Dongfeng 4x2 Electric Water Truck with 80kW CATL Battery Power Images |
