Place of Origin : Hubei, China
Price : $21,000/units 1-9 units
Product name : electric cleaning sprinkler truck
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders




| Vehicle technical parameters | | | | | ||||
| product name | Pure electric cleaning sprinkler truck | product model | HTT5180GXSBEV | | ||||
| gross mass (Kg) | 18000 | Production address | Suizhou City, Hubei Province | | ||||
| Rated load mass (Kg) | 8525 | outline dimension (mm) | 7950,8490,9050,8110,8250,8360,8730×2520×2850 | | ||||
| curb weight (Kg) | 9280 | axle weight | 6500/11500 | | ||||
| Number of cab members (person) | 3 | number of axles | 2 | | ||||
| Approach angle / departure angle of (°) | 19/11,13/11,10/11 | Front suspension / rear suspension (mm) | 1260/2120 | | ||||
| wheel base | 4500 | Top vehicle speed (Km/h) | 90 | | ||||
| Chassis technical parameters | | | | | ||||
| Chassis model | EQ1181DACEV4 | Chassis brand | Pure electric truck chassis | | ||||
| number of axles | 2 | Number of tires | 6 | | ||||
| tyre size | 295/80R22.5 18PR | | | | ||||
| Number of steel plate spring sheets | 8/10+7 | | | | ||||
| front gauge (mm) | 1910,1980 | rear track (mm) | 1865 | | ||||
| Fuel types | Pure electric | ABS | have | | ||||
| Chassis wheelbase | 5300mm | Battery brand | Ningde era | | ||||
| Rated / peak power (kW) | 120/180 | Rated power of the mounted motor | 80 KW | | ||||
| Upload consumes power per hour | 40KWH | Rated / peak rotation speed (rpm) | 2292/4500 | | ||||
| Rated / peak torque (Nm) | 500/1000 | Battery level (kWh) | 210.56 | | ||||
| Driving range (km) | 280 | charging time (h) | 1.5 | | ||||
| engine type | | displacement (ml) | power (Kw) | horsepower | ||||
| TZ366XS50E | | | 180 | 245 | ||||
| After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | | | | | ||||







|
|

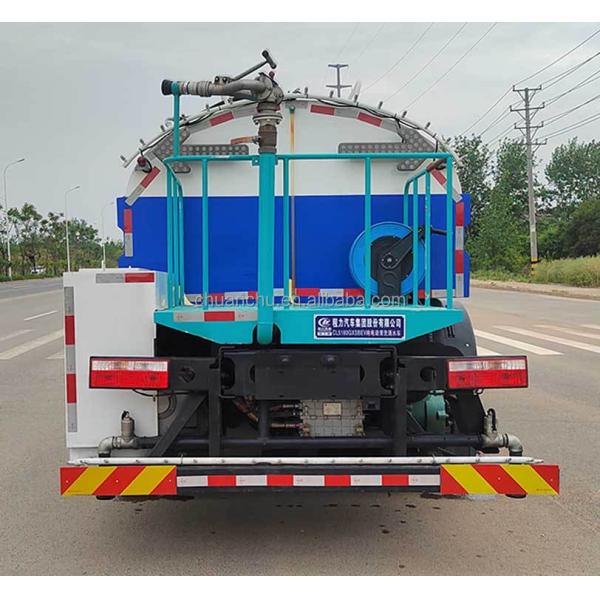

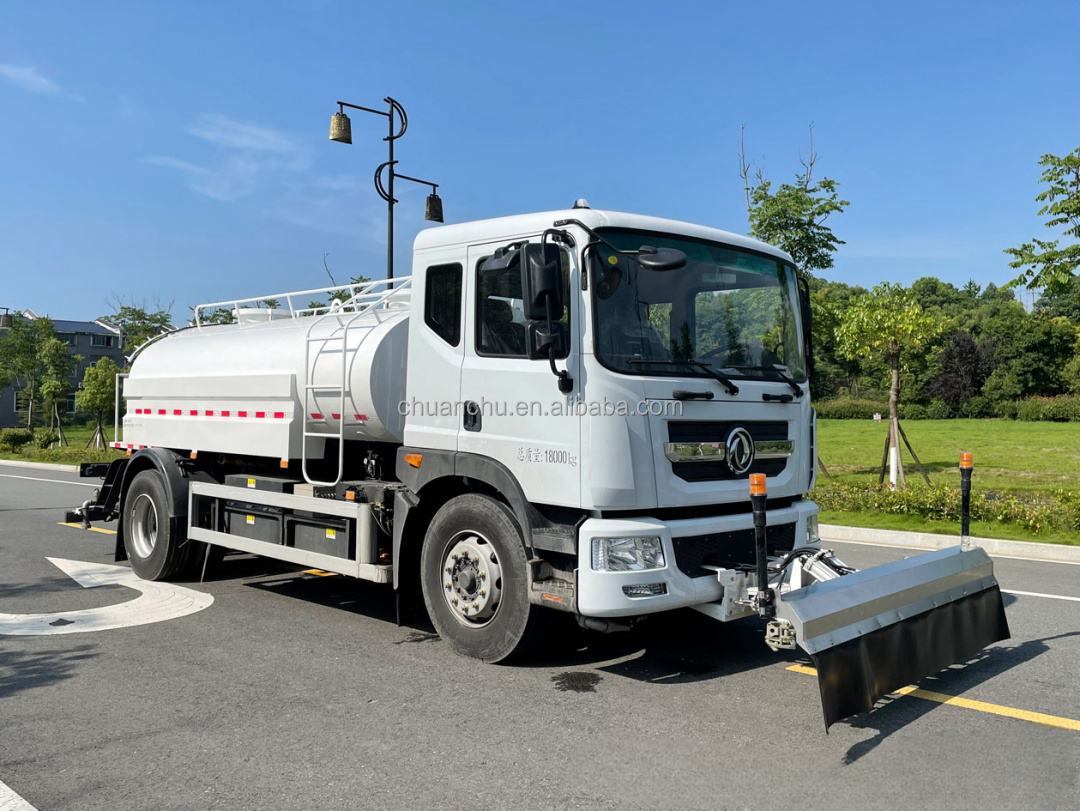

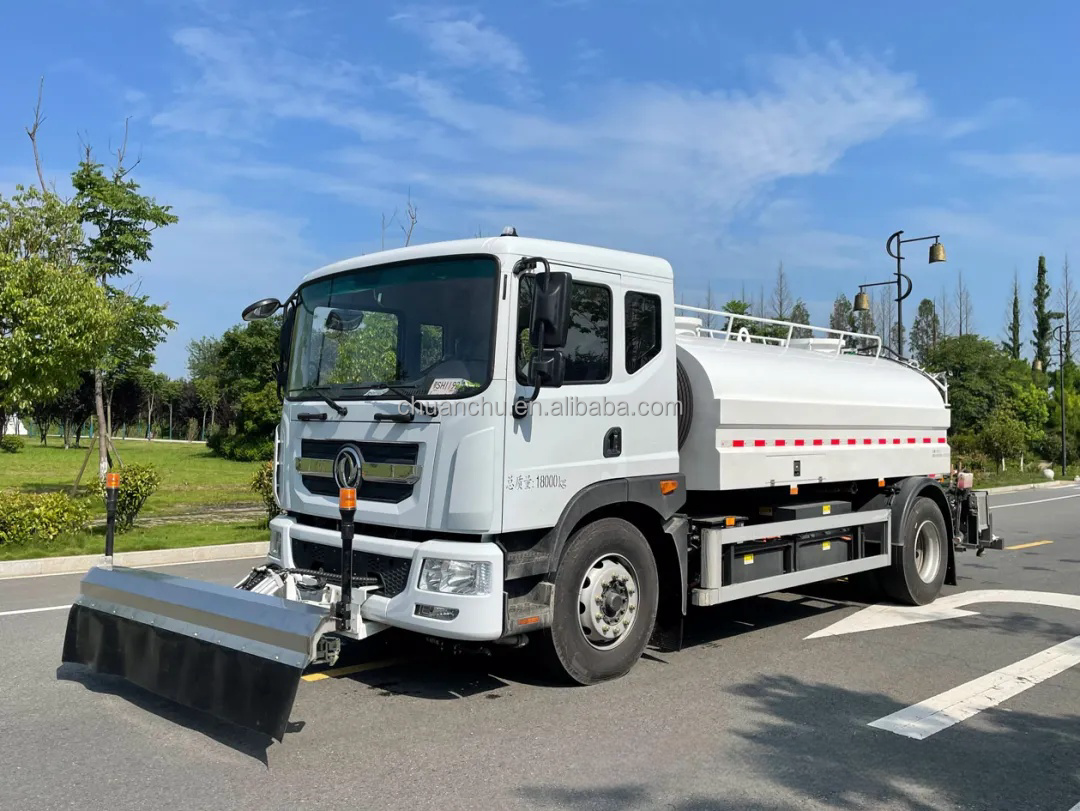

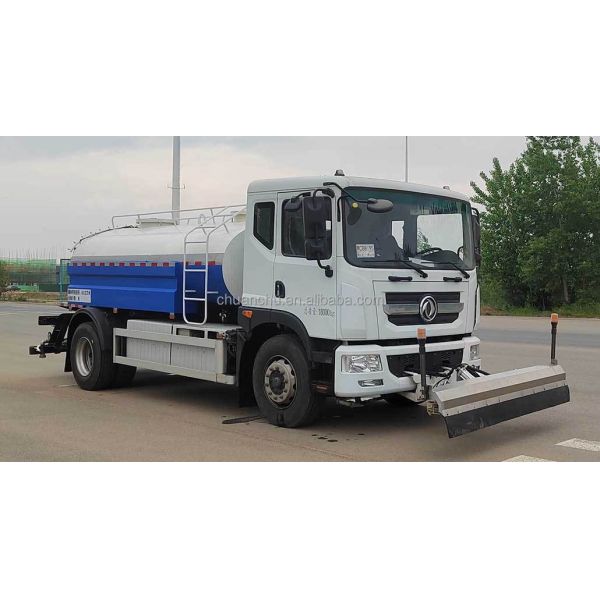

Pure Electric Water Mist Sprinkler Truck for Landscaping and Energy Efficiency Images |
